| Brand Name : | Yonke |
| Model Number : | M1050A |
| Certification : | ISO9001 |
| Price : | USD16000 |
| Payment Terms : | T/T |
| Supply Ability : | 50sets per 3 month |
| Delivery Time : | 2-3month |

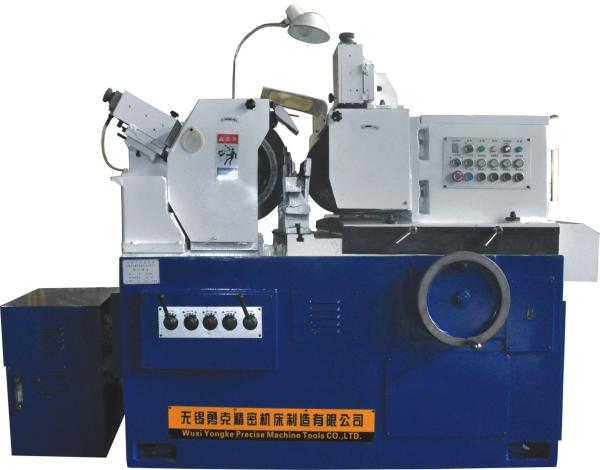

Centerless grinding machine Type: M1050A
Contact: Min Chen
Email: chenminmin80@hotmail.com
Main application
The machine is used to semi-automatically plunge-through grinding the outer surface of ring parts, shaft parts, stage parts, tape shaped parts and other round turning surface etc.
| 7～50 mm 120mm 5～50mm 120mm P400×150×203 PSA300×150×127 1668 r/min 20-200r/min -2°～+5° -1°～+3° 0.002mm 220mm 13.78KW 1920×1681×1479mm 2800Kg 0.002μm 0.003μm |
Main features:
1. Grinding wheel support is stable, regular wheel support is movable.
2. Grinding wheel adopts cantilever type structure, Spindle adopts oil-film bearing.
3. Reg. wheeel adopts cantilever type structure. Spindle adopts integrity 1:30 taper sliding bearing.
4. Reg. wheel feeding adopts dovetail needle guide, feeding through differential leadscrew.
5. AC frequency converter is used to change the speed of Reg. wheel.
|
|
