    DKCK-ST80 Double spindle CNC lathe, Siemens system, high precision, high productivity

    Ask Lasest Price
    Brand Name : DIKE
    Model Number : DKCK-ST80
    Certification : CE; ISO9001
    Price : USD68000 per set
    Payment Terms : T/T
    Supply Ability : 10set 3month
    Delivery Time : 3month
    • Product Details
    • Company Profile

    DKCK-ST80 Double spindle CNC lathe, Siemens system, high precision, high productivity

    Wuxi Dike Machinery Co. Ltd. 20 years manufacturer for automatic lathe machining line.

    Contact: Min Chen +86 158 5270 8933( wechat)

    E-mail: chenminmin80@hotmail.com


    DKCK-ST80 Double spindle CNC lathe

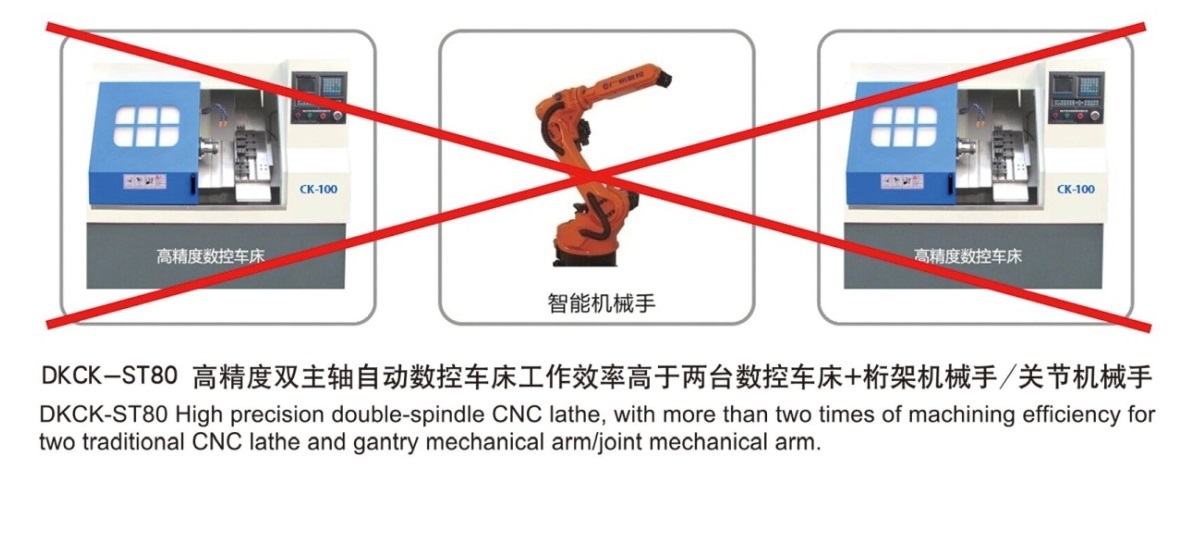

    The machine adopts Siemens CNC system,is widely used for turning high precision ring parts like bearing ring, automobile ring parts, short shaft parts etc. Its working efficiency is higher than two separate single CNC lathe With high machining precision, the machine is equipped with automatic loading and unloading mechanism, it saves working space, labor cost, and avoids workpiece injury. For detail inquiry, please contact us.

    With your workpiece and its machining requirments, we could supply you with best machining solution!

    Parameter for Double spindle CNC lathe

    NameParameterNameParameter
    Max. rotating diameterØ300mmPower head(turning & milling)Optional
    Max. clamping diameterØ72mmSpindle runout＜0.005mm
    Workpiece length80mmPosition precision＜0.005mm
    X axis travel500mmRepeat precision＜0.003mm
    Z axis strvel250mmSquare tool holder20x20
    Main motor output5.5～15KWRound tool holderØ20
    Max. spindle speed3000～8000 RPMOverall2900*1700*1900
    CNC systemSiemens 808D/828DWeight4.5T
